Web Usage

Orchestrator Actions

Case Orchestration

The Case Orchestration module allows users to execute profiles and modules on specific cases. Each execution creates a handler. A handler is defined by the OsirDbHandlerModel class in the osir_service/postgres/model directory. It contains:

  • The list of executed modules

  • The list of tasks generated by the master process

Available Actions:

  • Profile Selection — Choose from existing profiles to execute predefined sets of modules.

  • Module Selection — Select individual modules to execute on a case.

  • Module Management — Add or remove modules from selected profiles.

  • Module Configuration — Edit module configuration using a YAML editor.

  • Case Selection — Choose the target case directory for processing.

  • Reprocessing — Option to reprocess previously processed files.

  • Execution — Submit the selected profile/modules for execution on the chosen case.

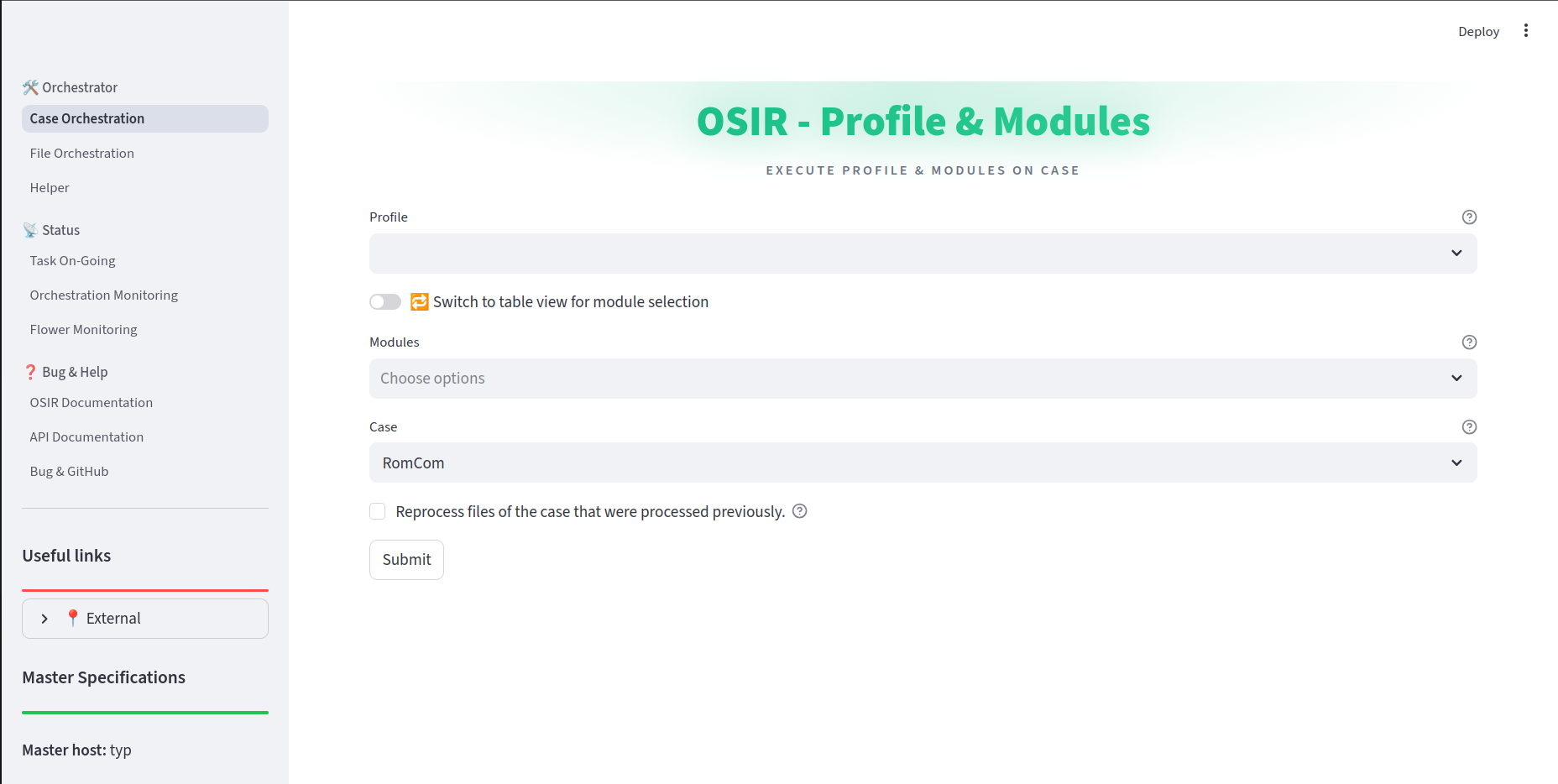

Case Orchestration

File Orchestration

The File Orchestration module provides a file explorer interface for executing modules on specific files or folders. Each execution create only a task and not a handler.

Available Actions:

  • File Exploration — Browse the case directory structure.

  • File Operations:

    • View file content (first 5 lines preview)

    • Download files

    • View task logs associated with files

  • Module Execution:

    • Run modules on individual files

    • Run modules on all files within a directory

  • Search and Navigation — Search for specific files or directories.

  • Tree View — Expand/collapse the directory tree for easy navigation.

Exemple:

Windows & Linux module execution through WebUi :

Helper

The Helper module provides auxiliary functions for viewing configuration details.

Available Actions:

  • Profile Viewer — View the YAML configuration of any profile.

  • Module Viewer — View the YAML configuration of any module.

  • Configuration Inspection — Examine the structure and parameters of profiles and modules.

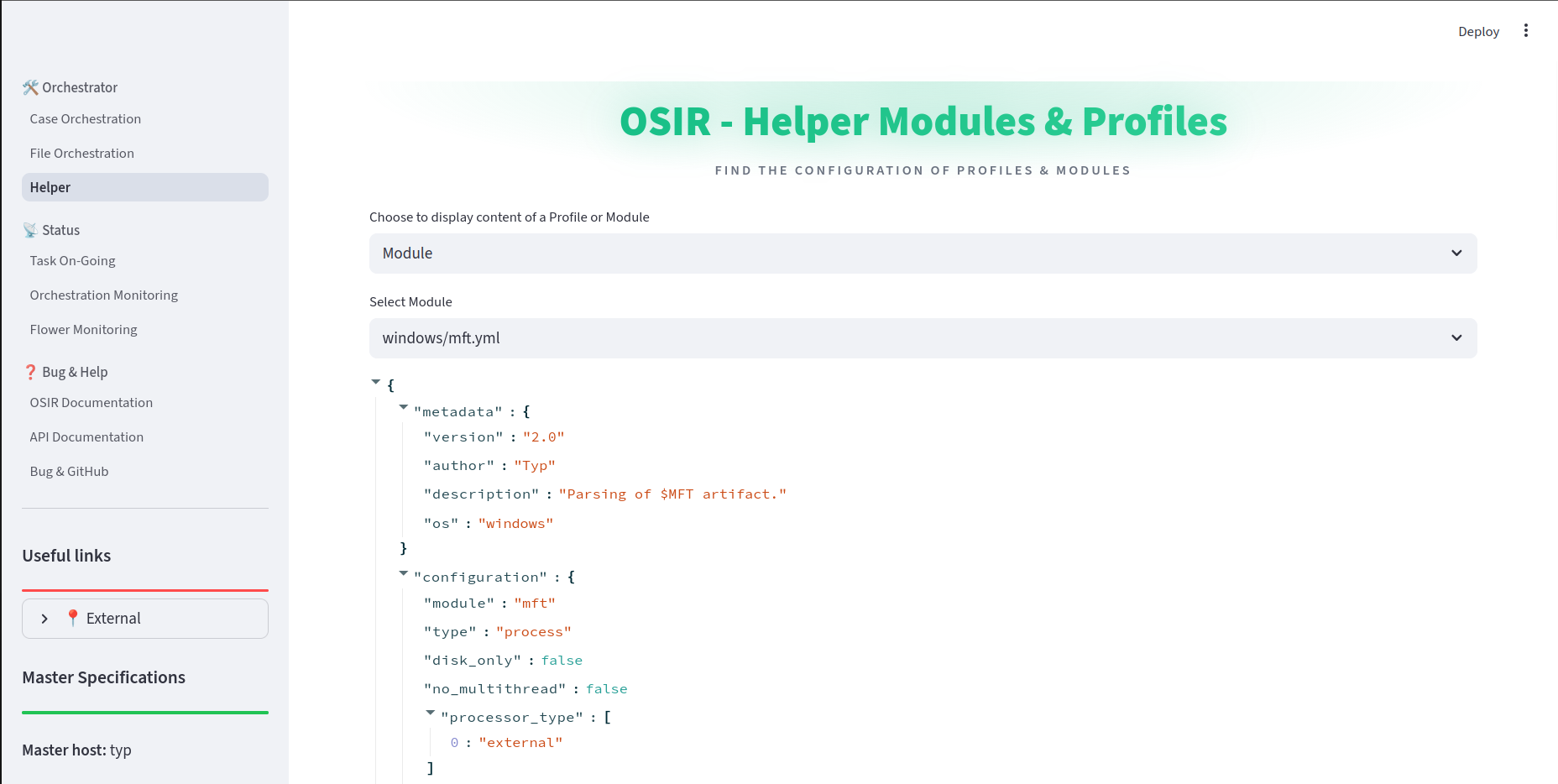

Helper

Status Monitoring Actions

Task On-Going

The Task On-Going module provides real-time monitoring of currently executing tasks.

Available Actions:

  • Task Listing — View all tasks with task_created or processing_started status.

  • Task Details — Click on any task to view detailed information.

  • Task Monitoring — Automatically switch to detailed monitoring view when selecting a task.

  • Status Filtering — View tasks filtered by processing status.

Orchestration Monitoring

The Orchestration Monitoring module provides comprehensive monitoring of handlers and tasks.

Handler Monitoring:

  • View all handlers by case

  • Filter handlers by case name and processing status

  • View handler details including associated task IDs

  • Delete handlers and their associated tasks

  • Clear all database entries for a specific case

Task Monitoring:

  • View all tasks associated with a case

  • Filter tasks by handler ID, module, and processing status

  • View detailed task information including execution traces

  • Download task logs

  • Rerun failed or completed tasks

Task Log Viewing:

  • View detailed execution logs for specific tasks

  • View task metrics and timing information

  • Download complete log files

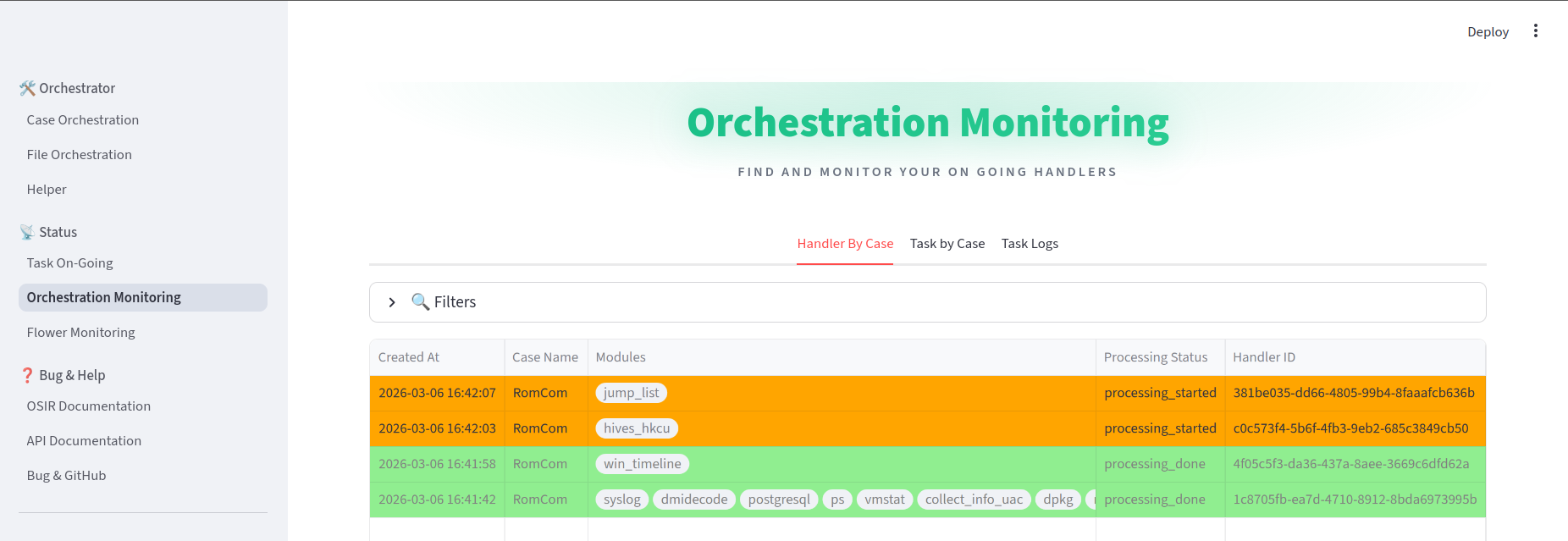

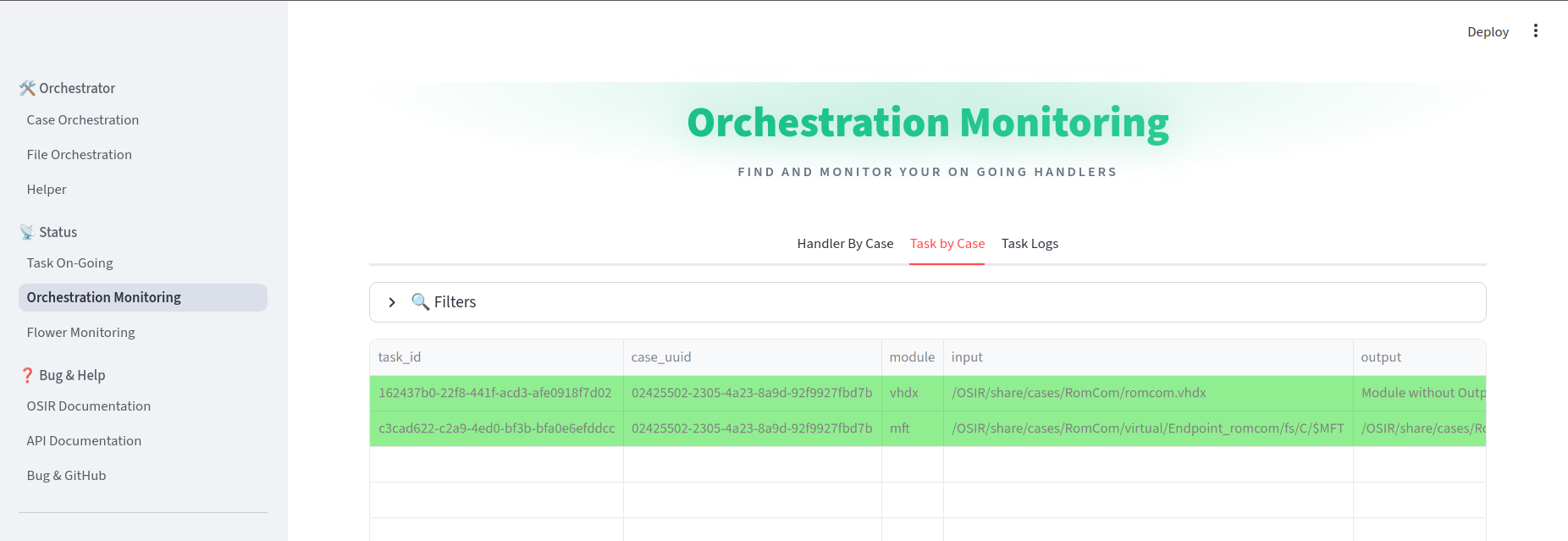

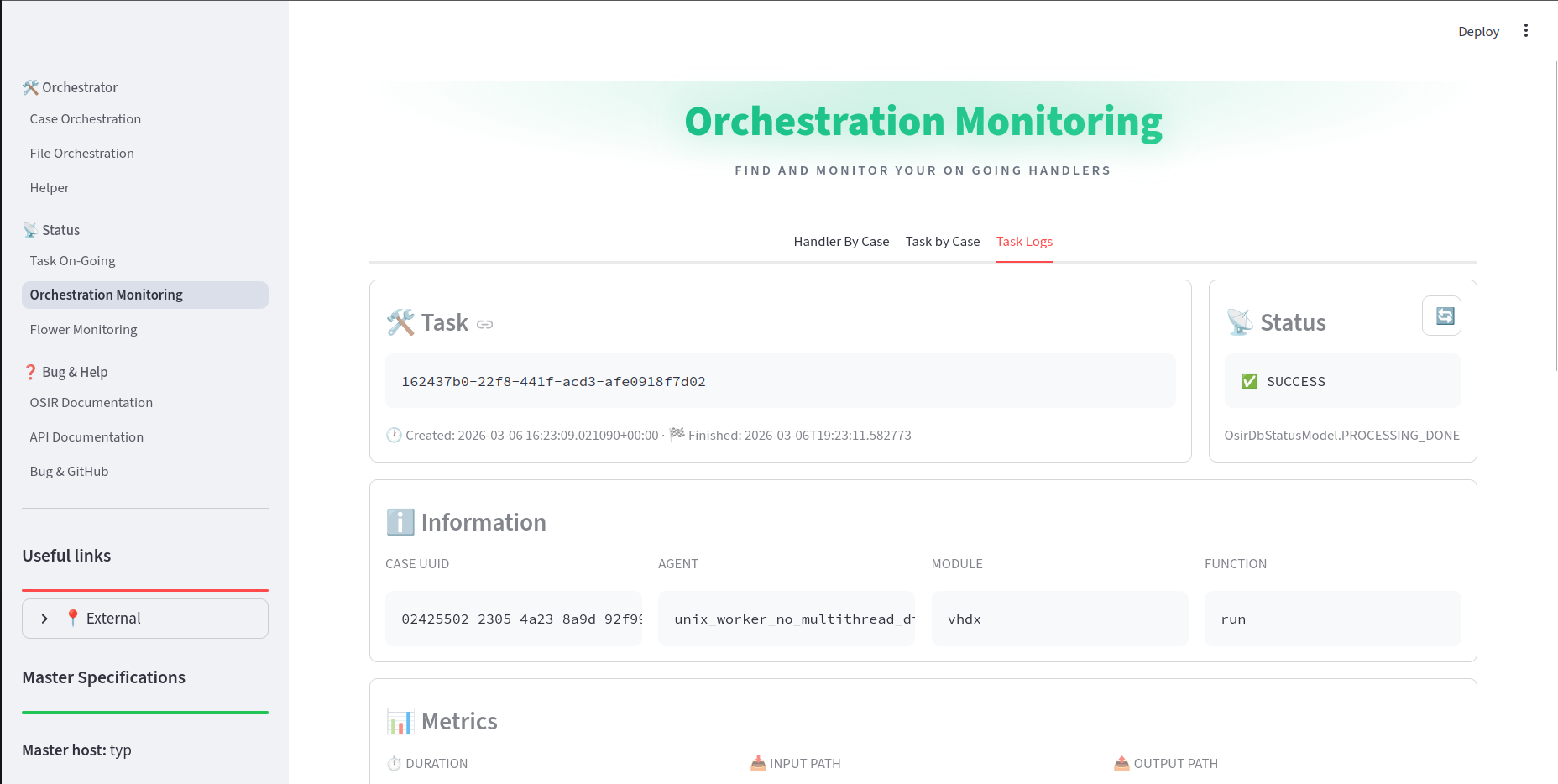

Handler Monitoring Task By Case Task Info

Flower Monitoring

The Flower Monitoring module provides monitoring of Celery workers and tasks.

Available Actions:

  • Worker Monitoring — View status of all Celery workers (online/offline).

  • Task Details — View detailed task information through the Flower web interface.

  • Worker Management — Monitor worker health and availability.

Flower Monitoring
